Warrior WinchesDescription
Warrior Samurai 12000 V2 – 12v/24v Electric Winch
Our top performance winches just got better!
Our premium ‘Next Generation’ Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum.
Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.
Standard Accessories with the Warrior Samurai 12000 V2 Winch
- Galvanised steel cable
- 3m Remote Handset
- Heavy Duty Steel Roller Fairlead
- Heavy Duty Battery Leads
- Stainless Steel Mounting hardware
- 5/16 hook

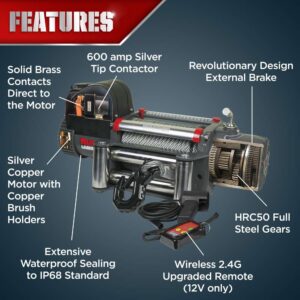

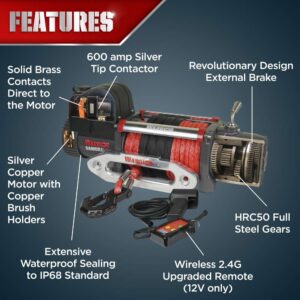

The Outstanding features with the Warrior Samurai 12000 V2 Winch
- External Brake
- All Brass (no corrosion) Series Wound Motor
- Double Sealed Motor
- Sealed Waterproof Contactor
- Reinforced Plastic Contactor Cover
- Double Sealed Drum (Gearbox/Motor)
- Sealed 3 Stage Planetary Gears
Samurai 12000 V2 Winch Specifications

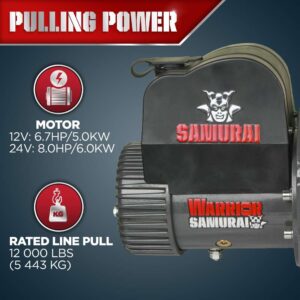

| Rated Line Pull | 12000 lbs (5443 kg) |
|---|---|
| Motor | 12v : 5.8hp / 5.0kw 24v : 8.0hp / 6.0kw |
| Gearing | 253:1 |
| Braking Action | External Brake |
| Drum Size – Dia x L | 63 x 223mm |

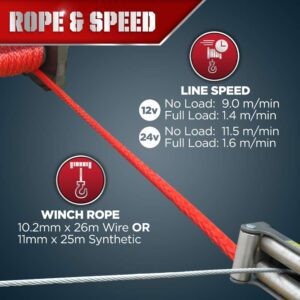

| Cable – Dia x L | Steel: 10.2mm x 26m Synth: 11mm x 25m |

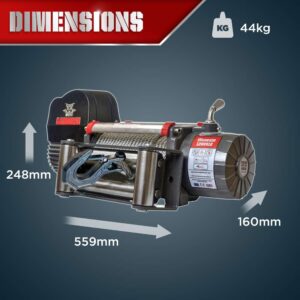

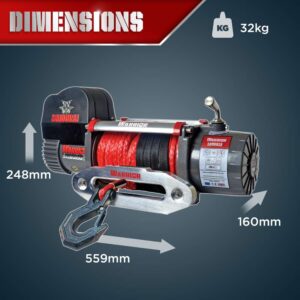

| Dimensions | 559 x 160 x 248mm |
| Mounting Pattern | 254 x 114 mm |
| Weight kg | Steel: 44 kg Synth: 32 kg |
| Clutch | Manual |
| Certification | CE Certified |
