Warrior Ninja 4500lb Electric Winch

£187.49 (ex. VAT) - £224.99 (inc. VAT)

Features

Power In and Power Out: Provides efficient and reliable winching both in and out.
High Torque Motor: Delivers maximum pulling power for tough tasks.
HD Waterproof Contactors: Ensures durability and reliability in all weather conditions.
Full Steel Planetary Gearing: Offers strong, long-lasting performance under heavy loads.
Full Load Holding Brake: Provides secure load control, preventing slippage during operation.

Voltage

Cable Type

Clear

Product price:	£187.49 (ex. VAT)
Total options:
Order total:

Product price:

£187.49 (ex. VAT)

Total options:

Order total:

SKU: N/A Categories: Warrior Ninja Product Range, Warrior Winches, warrior winches and hoists, All Winches, Warrior, Warrior Ninja Winches, Electric Winches, 12v Electric Winches, 24v Electric winches Brand:

Warrior Winches

When it comes to the perfect fusion of brute power, legendary reliability, and unbeatable value, Warrior Winches stands in a league of its own. Trusted by the British Military, professional recovery operators, and off-road enthusiasts across the globe, Warrior has become the go-to name for those who need high-performance recovery gear without the premium price tag.

At UK Winches and Hoists, we are proud to be a premier stockist of the Warrior range. Whether you are outfitting a commercial recovery truck, a 4x4 expedition vehicle, or an industrial trailer, Warrior provides the mechanical muscle to pull you through the toughest conditions the UK weather can throw at you.

Description

Warrior Ninja 4500lb Winch – Heavy-Duty Power (12V/24V)

Newly upgraded and relaunched from the popular C4500 EWX, the Warrior Ninja 4500 maintains all the high-quality features you expect while offering enhanced reliability. This winch stands out in its class thanks to its heavy-duty clutch, the recently added 4-pin Air Socket, and a redesigned solenoid control pack.

Designed for serious work, this winch offers you the flexibility of choosing between 12V or 24V power and Synthetic or Steel rope to perfectly match your application, whether you are on an ATV or a larger utility vehicle.

Key Features and Construction

The Ninja 4500 is built for lasting, smooth operation with features focused on durability and quiet performance:

Premium Gearing: Features full steel three-stage planetary gearing, making it one of the smoothest and quietest winches currently available on the market.
Robust & Protected: Packed with life-lengthening features like a strengthened steel drum and chip-resistant paint.
Watertight Electrics: Both the controller socket and the contactors are fully watertight (IP67 rated), ensuring reliability in all weather conditions.
Power: Powered by a sealed high-power motor with a massive line capacity of 4,500lb (2041kg), and a powerful pull of 1.5m per minute at full load.

Standard Specifications

Feature	Detail
Line Capacity	4,500lb (2041kg)
Gearbox	Freespooling Clutch (Allows manual unwinding)

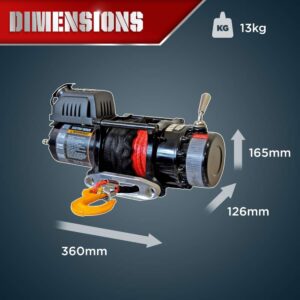

Dimensions	360mm (L) x 126mm (D) x 165mm (H)
Mounting Bolt Pattern	129mm x 96mm
Warranty	12-month Return to Base

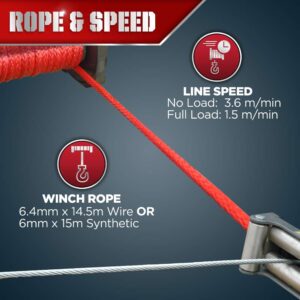

Line Pull (No Load)	3.6 m/min (20 Amps)
Line Pull (Full Load)	1.5 m/min (200 Amps)

Included Accessories

The following accessories are included as standard to ensure quick installation and operation:

Wired Hand Control: 3m wired hand control with an Air Socket style plug.
Mounting Plate: Included for standard installations.
Mounting Bolts: Included for standard installations.
Battery Cables: Heavy Duty Battery Cables (may require extension depending on application).
Instruction Manual.

Note: Wireless control is available as an optional extra.

Important Installation Note (For Synthetic Rope Option)

For the majority of applications using the Synthetic Rope option, the rope will need to be temporarily removed from the drum, fed through the hawse fairlead once it is mounted in place, and then re-wound onto the drum. A fixed hook will not (and should not) feed through the fairlead.

Disclaimer: Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
