Warrior 500kg 240v Electric Hoist with Air Socket

Compact and versatile, Warrior have created a hoist with almost limitless applications. With a lift capacity of 500kg, and wattage of 240v, this electric hoist is ideal for all manner of jobs and lifting applications.

Design to be as easy to install as possible, the easy-change cable design makes set up a breeze. Designed to be mounted to a box section of up to 46mm x 46mm – you’ll be up and running in no time.

Giving you professional quality, the hoist conforms to part of BS EN14492-1 and BS EN14492-2 and is IP 54 rated for your confidence. Complete with a 2.75m long wired remote with power in and power out facility, you can get the job done safely and easily.

With a duty cycle of S3 – 20% on a 10-minute cycle; that basically means it can run continuously for 2 minutes and then requires an 8-minute cooldown. The load-holding break ensures your load is held safely during downtime, as Warrior is dedicated to safe and fuss-free usage.

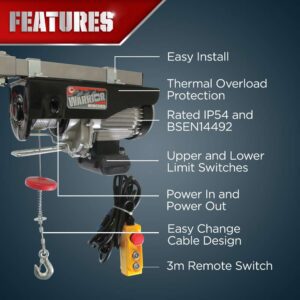

Standard Features:

♦ Line Capacity: 250kg single cable, & 500kg double cable
♦ Lift Height: 18m metres single cable & 9 metres double cable (Using Included Pulley Block)

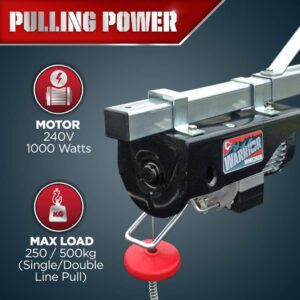

♦ Motor: Reversible 1000W 240v 50Hz Motor – Powers In and Out (Standard UK 3-Pin Plug – Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12 Month Return to Base

Accessories:

♦ Wired Hand Control: 2.75m Wired Hand Control with Stop Button
♦ Wireless Control: Available as an optional extra
♦ Mountings: Included for Standard 46mm2 Box Section installations

Also Includes:

♦ 3-Pin UK Plug on 650mm Flex
♦ Pulley Block for double line operation
♦ Instruction Manual

Other Information:

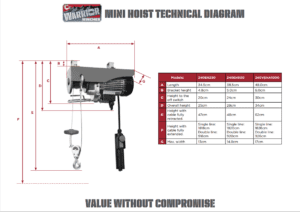

♦ Dimensions: 390mm L x 150mm D x 240mm H (510mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 18kg

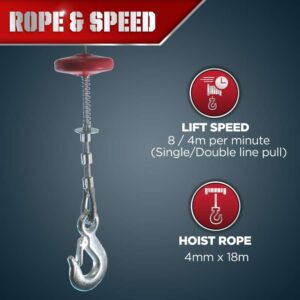

♦ Lifting Speed: 8m/min single cable & 4m/min double cable
♦ Casing Colour:  Black
