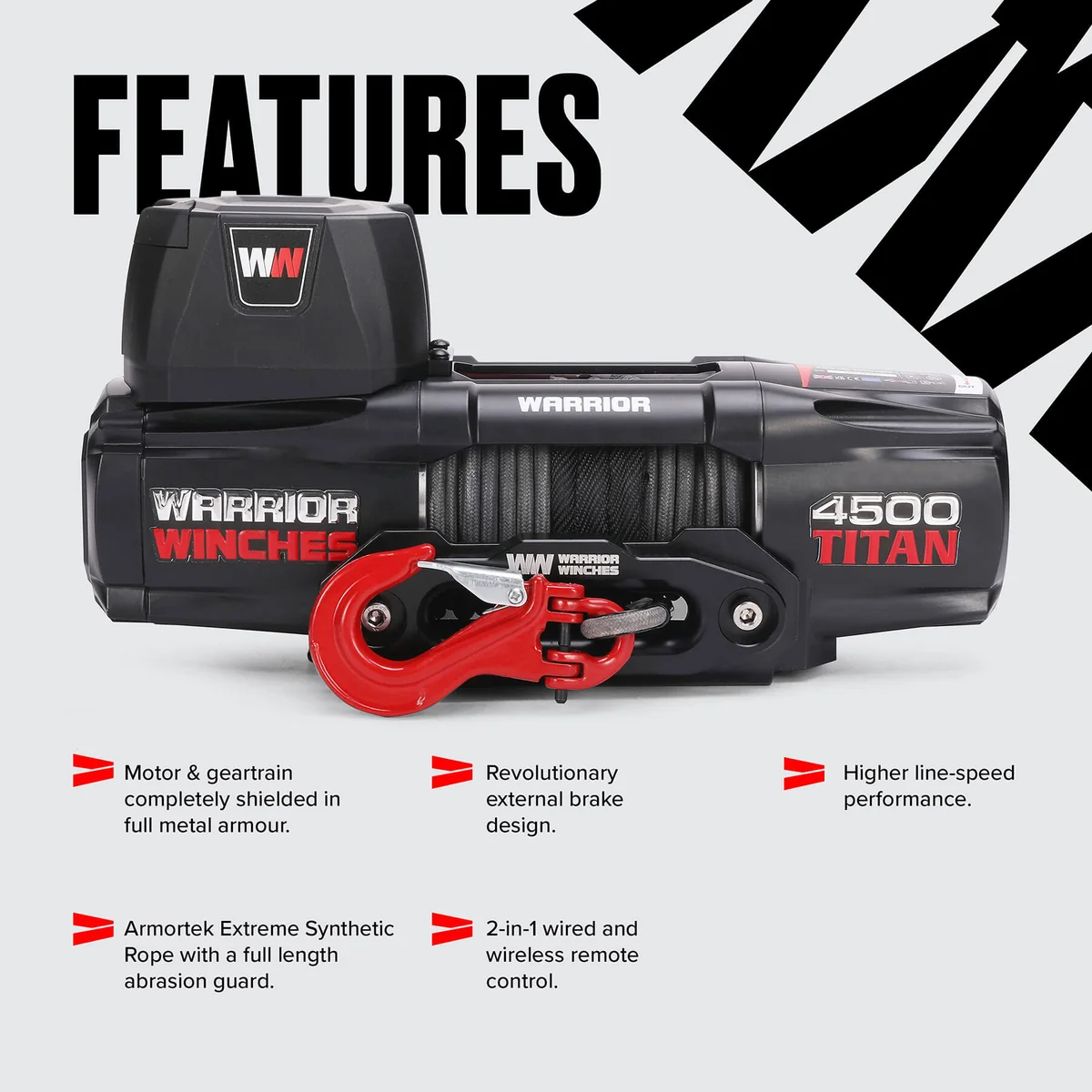

Features

Maximum Protection in Any Environment: Full metal armour casing shields internal components from impacts, dust, and harsh weather, extending the winch’s lifespan in extreme conditions.
Faster Recoveries, Less Waiting: Higher-speed line performance ensures quicker vehicle recovery, saving time and reducing effort during demanding operations.
Enhanced Safety on Slopes and Heavy Loads: The special brake design ensures precise stopping power, preventing accidental rollback or slippage on steep terrain.
Abrasion Resistant Pulling Power: Fitted with Armortek Extreme Synthetic Rope, the most advanced synthetic rope in its range with an outer 24 strand abrasion guard across the entire length.
Operate from Anywhere, Anytime: 2-in-1 wired and wireless remote control offers flexibility, letting you choose how to stay in control based on your environment. USB recharging cable included for easy recharging on the road.

Available on back-order

Description

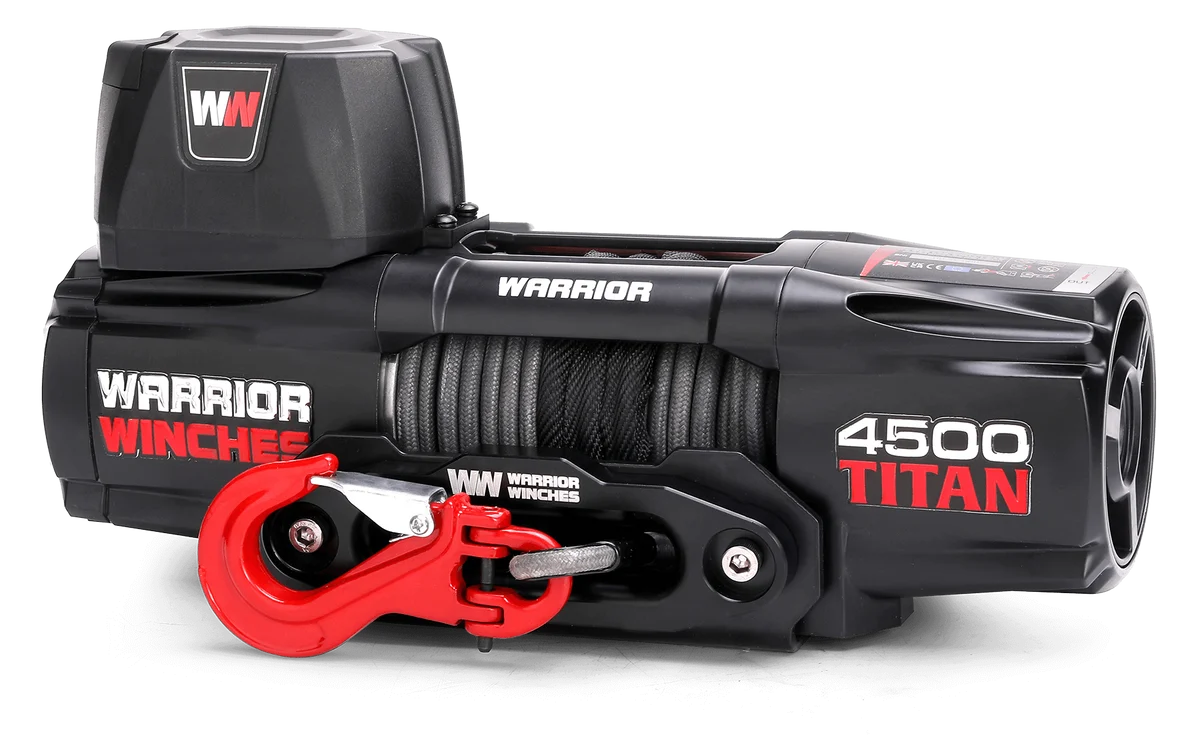

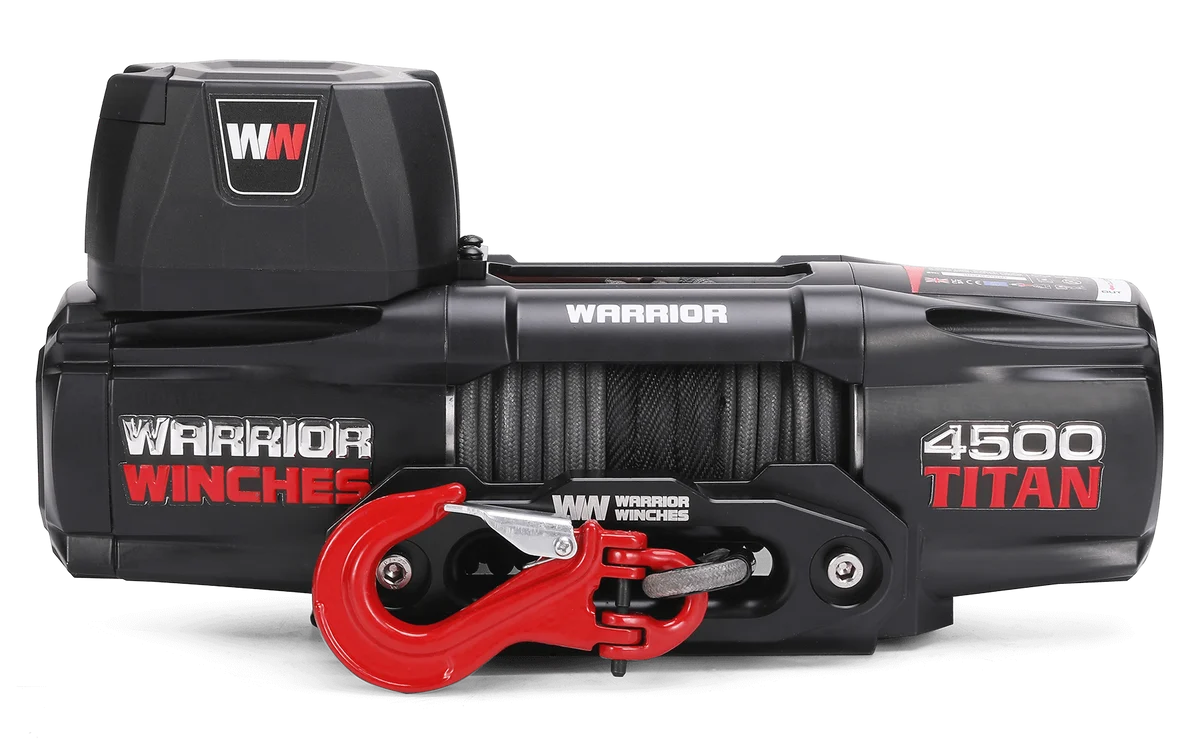

Warrior Titan 4,500lb 12V Synthetic Rope Winch

Name: Titan 4500 Electric Winch - 12v Synthetic Rope
SKU: 45TTAU12
Availability: PreOrder

When performance, durability, and ease of use are non-negotiable, the Warrior Titan 4,500lb Synthetic Winch delivers. Built specifically for extreme off-roaders, heavy-duty enthusiasts, and utility tasks, this premium 12V electric winch combines cutting-edge engineering with top-tier materials to provide fast, quiet, and smooth recovery solutions.

Equipped with a lightweight, high-tensile synthetic rope, it offers a safer, easier-to-handle alternative to steel cable without sacrificing an ounce of pulling power.

Key Features & Benefits

Lightweight Synthetic Rope: Premium synthetic line is safer to handle (no dangerous metal burrs), floats in water, and won’t kink, curl, or splinter under heavy loads.
Powerful 4,500 lbs Pulling Capacity: Engineered to handle mid-size recovery, making it the ultimate winch for ATVs, UTVs, quads, utility trailers, boats, and off-road setups.
Maximum Environmental Protection: Features a rugged full-metal armour casing that shields internal components from dust, moisture, and severe weather impacts.
Faster, Quieter Line Speeds: High-speed line performance ensures quicker vehicle recovery with reduced operational noise.
Enhanced Safety on Slopes: Designed with an advanced mechanical braking system that delivers precise holding power to prevent accidental rollback or slippage on steep inclines.
2-in-1 Rechargeable Remote: Ultimate flexibility featuring a dual wired and wireless remote control system, complete with a USB charging cable for convenient on-the-trail operation.

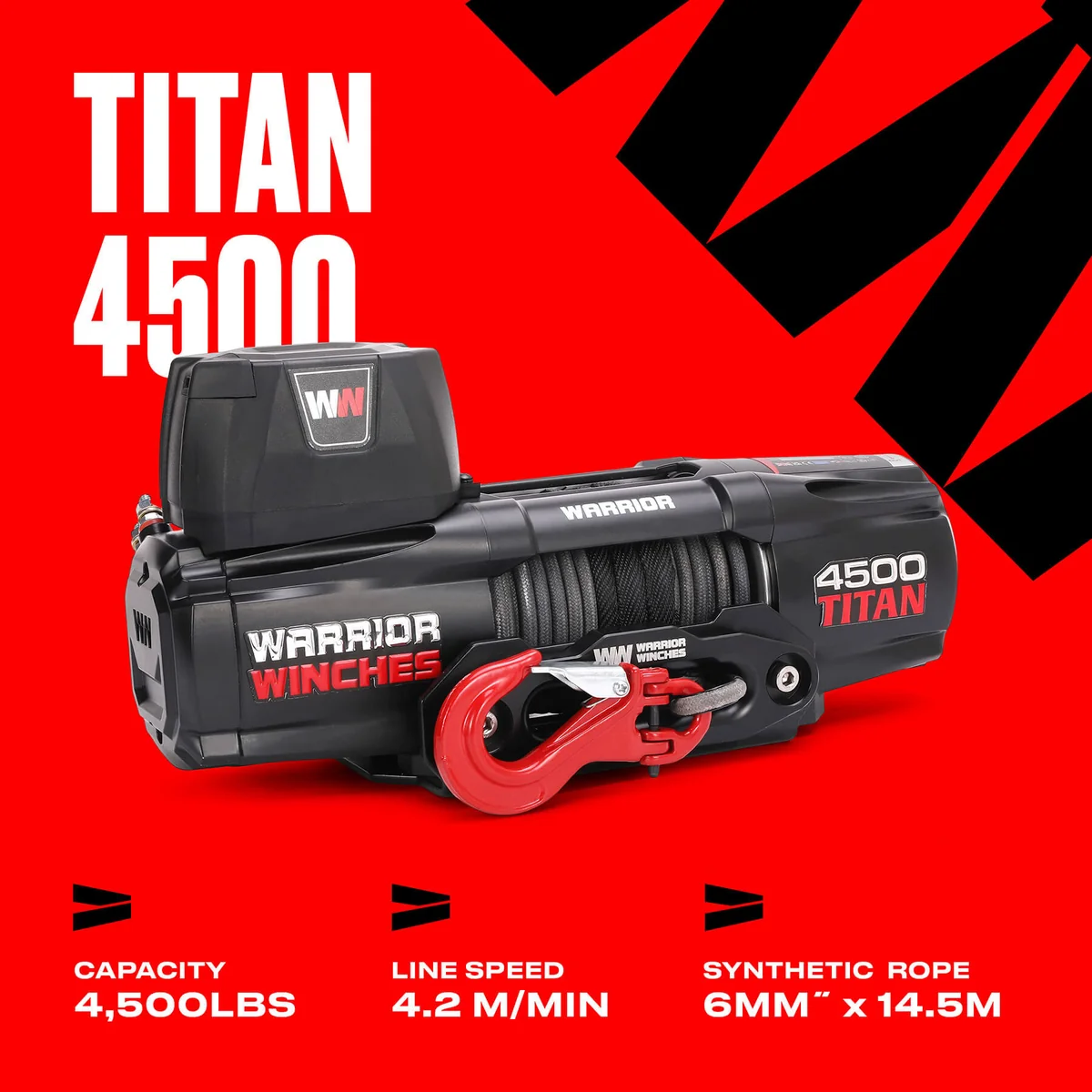

Specifications at a Glance

Rated Line Pull: 4,500 lbs (2,041 kg)
Rope Type: High-tensile synthetic rope with heavy-duty safety hook
Fairlead: Premium aluminum Hawse fairlead (optimized for synthetic rope)
Motor: 12V DC (3.4 hp Input / 1.4 hp Output)
Gearing: 3-Stage Planetary with a 166:1 gear ratio
Braking Action: Automatic / Mechanical Spring in drum
Waterproof Rating: IP67 Dustproof and protected against temporary water immersion
Warranty: 5-Year Manufacturer Warranty for ultimate peace of mind

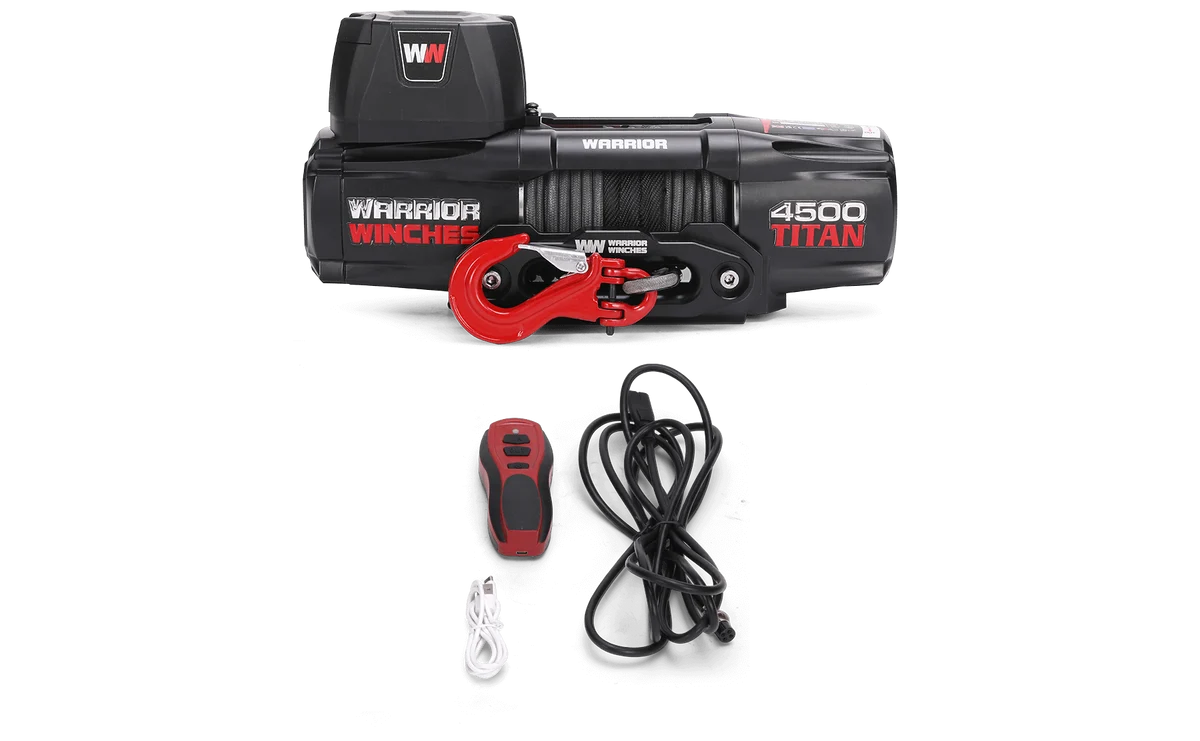

What’s in the Box?

Warrior Titan 4,500lb Winch
High-Tensile Synthetic Rope with Hook
Aluminum Hawse Fairlead
2-in-1 Rechargeable Wired/Wireless Remote
Heavy-Duty Battery Leads & Contactors
Mounting Plate & Hardware

Specifications

Sku	45TTAU12
EAN	5056789801777
Rated Line Pull	4500 lbs
Motor Type	12V: Input: 3.4hp / 2.5kW; Output: 1.5hp / 1.1kW
Rated Volt	12 V
Clutch	Manual
Gearing	166:1
Gearing System	Planetary
Braking Action	Mechanical Spring
Drum Size (Diameter x Length)	50 x 138 mm
Controls	2in1 Rechargeable Wired/Wireless Remote
Cable Material	Synthetic
Cable Size (Diameter x Length)	6mm x 15.0m Find replacement Armortek Synthetic Rope
Fairlead	Hawse
Mounting Pattern	168mm × 76.2mm
Waterproof Rating	67

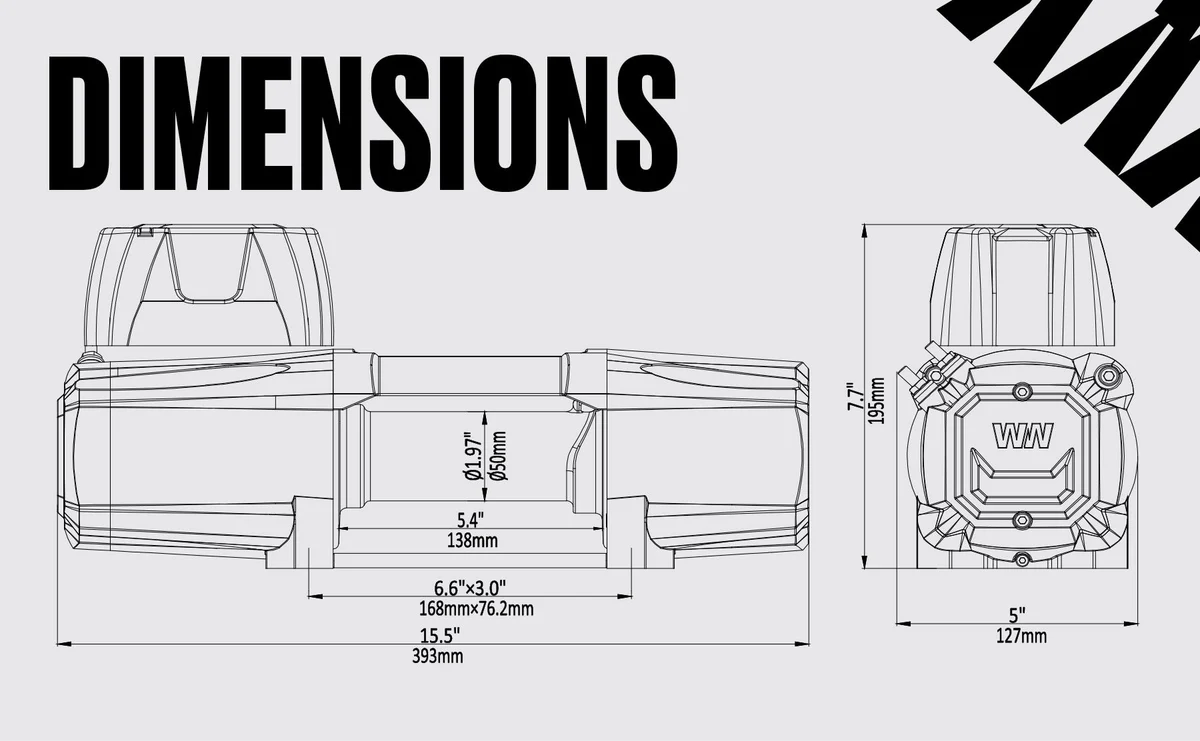

Dimensions	393 x 127 x 195 mm
Weight	13.5 kg
Warranty	5 Year
Certification	CE, UKCA

Layer of Rope/Cable	Line Pull: lbs(kgs)	Total Rope on Drum ft (m)
1	4500(2041)	11.5(3.5)
2	3700(1678)	26.2(8)
3	3150(1428)	42.6(13)
4	2740(1242)	49.2(15)

Line Pull lbs (kgs)	Line Speed 12v ft/min (m/min)	Amp Draw 12v
0	13.8(4.2)	25
1000(453)	11.8(3.6)	55
2500(1134)	8.8(2.7)	125
4500(2041)	5.6(1.7)	230

What's in the box

Titan Winch
Rope and Hook
Fairlead
Mounting Plate
Rechargeable Wired/Wireless Remote
Heavy Duty Battery Cables

Downloads

User Manual	Download
Brochure	Download
