Reid Lifting Porta Gantry 2000 kg SWL

Description

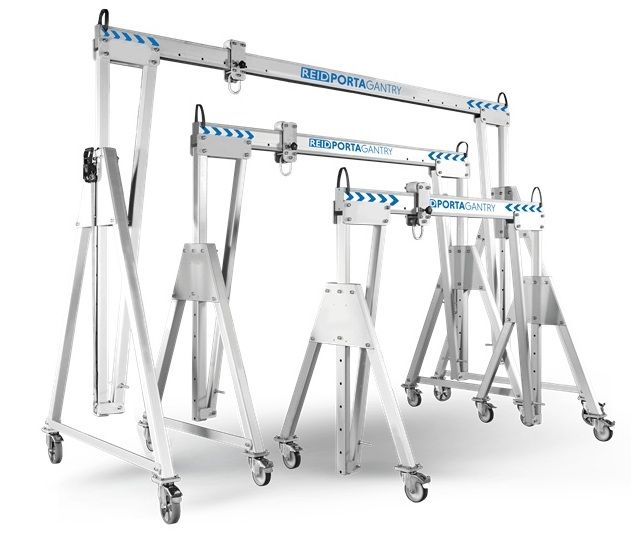

REID Lifting Porta Gantry 2000kg SWL – Portable Industrial Overhead Crane

Engineered for extreme performance without sacrificing mobility, the REID Lifting Porta Gantry (2000kg SWL) provides heavy-duty overhead lifting capacity in a light, modular frame. Manufactured in the UK from high-grade anodized aluminium, this 2-tonne mobile gantry system allows teams to execute heavy material handling and safe personnel lowering/retrieval in locations inaccessible to traditional crane systems.

Whether deployed for field operations, plant maintenance, or site safety, this gantry sets up fast using simple four-bolt manual assembly—eliminating the need for specialized tools or extra machinery on site.

Core Advantages & Features

• High-Capacity Dual Utility: Rated for a 2000 kg Safe Working Load (SWL) on material handling and a 750 kg Working Load Limit (WLL) for personnel safety applications.

• Certified Multi-Person Fall Protection: Functions as an approved fall arrest anchor for up to 5 users simultaneously, conforming to strict IRATA and PD CEN/TS 16415 guidelines.

• Lightweight Aluminium Build: High-tensile, corrosion-resistant anodized aluminium construction delivers maximum structural integrity while remaining manageable for manual transport.

• Fully Modular Configuration: Interchangeable components allow custom tailoring. Choose from variable A-frame heights (1.6m to 5.8m) and beam spans (2.5m to 8.4m) to suit your ceiling clearance and load widths.

• 360° Mobility Options: Outfitted with high-durability 360° swivel-locking castors as standard. Optional directional locks or pneumatic off-road castors are available for rough ground conditions.

• Explosion-Proof / ATEX Approved: Standard ATEX Zone 2 certification (Zone 1 optional) ensures safe operation in volatile or hazardous atmospheric environments.

• Trolley Compatibility: Fully compatible with manual, gated, gear-driven, and masterlink trolley attachments for smooth load movement across the beam.

Key Applications & Industry Uses

• Water & Utilities Treatment: Reliable lifting of submersed pumps, heavy valves, and equipment over wet wells and treatment tanks.

• Confined Space Entry & Rescue: Safe lowering, retrieval, and fall arrest protection for multi-person teams working in shafts, vaults, and manholes.

• Plant Maintenance & Manufacturing: Precision movement and placement of heavy machine parts, dies, and motors on workshop floors.

• Civil Construction & Infrastructure: Mobile overhead support for trackside rail repairs, trench maintenance, and temporary structural rigging.
