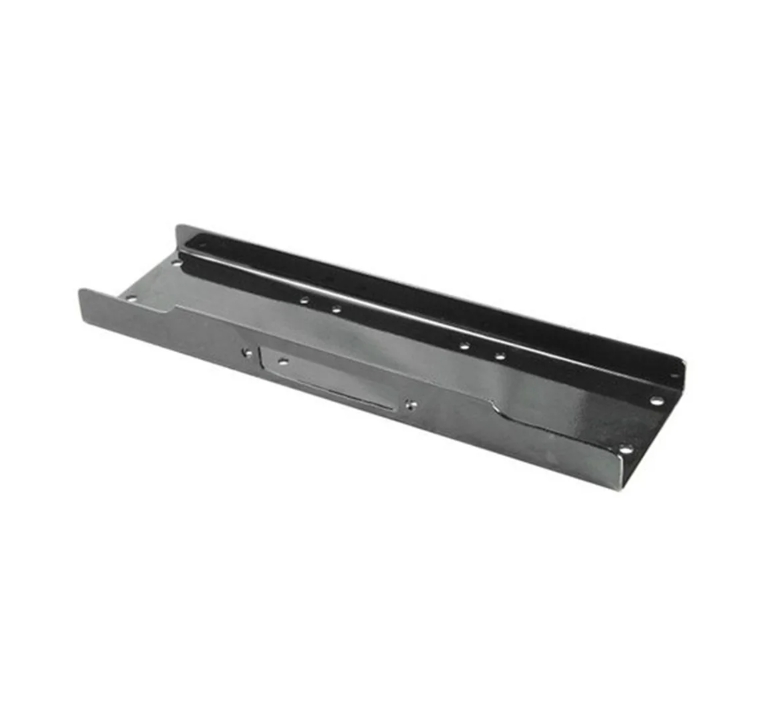

The Novawinch heavy-duty steel mounting plate (SKU: NW-MP-HEN10000), designed specifically to hold their commercial 8,000 lb to 12,000 lb winches , utilises industry-standard footprints for easy fabrication, flatbed, or trailer mounting.
The critical dimensions for the mounting plate are:
1. Winch Mounting Bolt Pattern (Footprint)
This is the pre-drilled pattern on the base of the plate where the feet of the HEN10000 winch bolt down.
-
Width: 10 inches (254 mm)
-
Depth: 4.5 inches (114.3 mm)
2. Fairlead Bolt Pattern
These are the holes pre-drilled at the front lip of the plate to mount your roller fairlead or aluminium hawse.
-
Length: 10 inches (254 mm) center-to-center
Useful Context: Winch Dimensions vs. Plate Clearance
If you are planning the physical space or an enclosure for this setup, keep in mind that the HEN10000 hydraulic winch itself is notably larger than the bolt pattern. You will need to account for the following total clearances around the mounting plate:
-
Total Length: 25 inches (634 mm)
-
Total Width: 9.84 inches (250 mm)
-
Total Height: 9.3 inches (235.6 mm)
Installation Note: Novawinch specifies that if you modify this plate or weld it into a custom tray/bumper, the final mounting surface must remain completely flat within 0.5 mm to ensure the hydraulic motor housing, drum, and planetary gearbox stay perfectly aligned under heavy load.
