Novawinch Stinger 1200: The Ultimate 12V Winch With Wire Rope

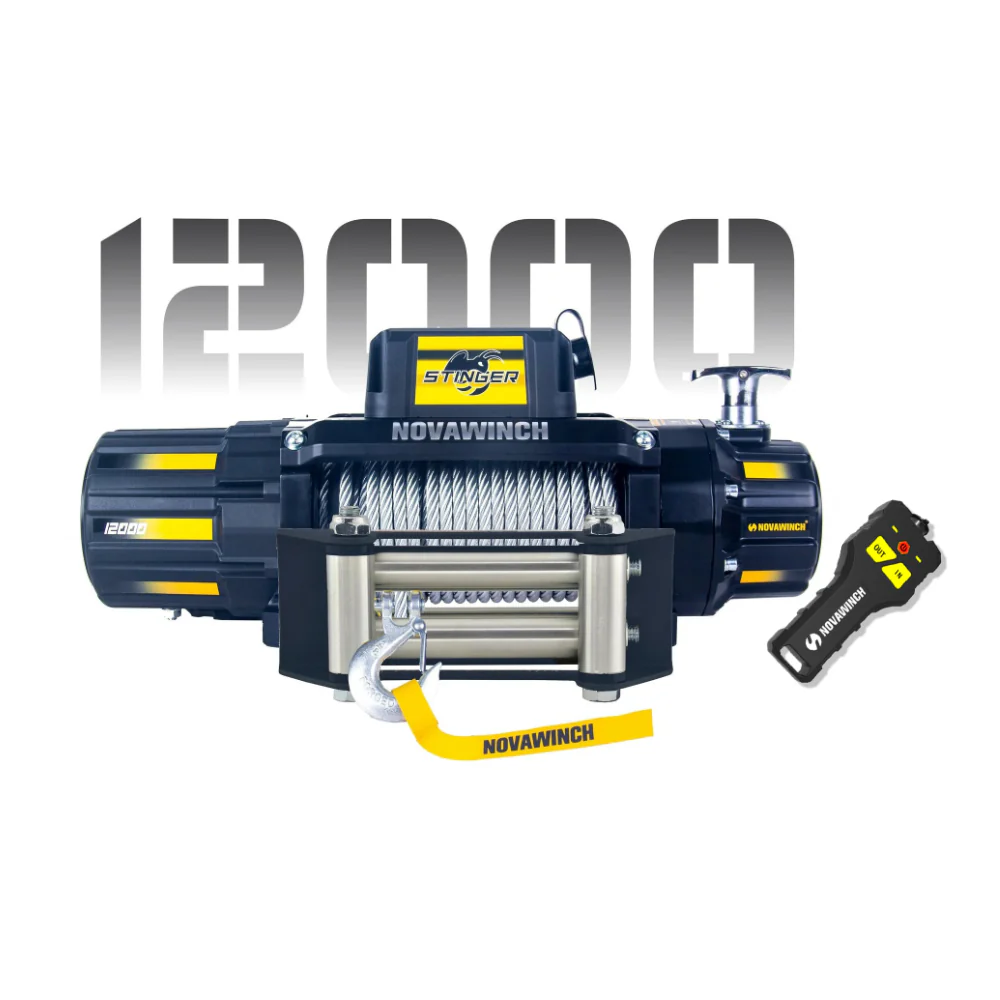

Novawinch 12,000lb 24V Electric Winch with Wire Rope & Wireless Remote

£420.00 (ex. VAT) - £504.00 (inc. VAT)

The Novawinch Stinger 12000 is a 24V 12000lb electric winch with wire rope built for serious recovery work. Ideal for recovery trucks, car transporters and 4x4s with 24V systems, it combines 5443kg pulling power, IP68+ sealing, steel wire rope and DUO wireless/wired control. 24V operation gives lower current draw than the 12V version for the same load. 12 month warranty

Description

Serious Recovery Power for Recovery Trucks, Transporters and 24V 4x4s

The Novawinch Stinger 12000 is a 24V 12000lb electric winch built for demanding recovery work in the UK. Designed for recovery trucks, car transporters, plant loading and 4x4s with 24V electrical systems, it delivers the pulling power, control and durability you need when conditions turn difficult. With steel wire rope, wireless remote control and backup wired operation, the Stinger 12000 is engineered to perform when reliability matters most. 24V operation reduces current draw compared with 12V for the same load, which helps protect wiring and batteries on commercial and heavy-duty rigs.

Built for Heavy-Duty Use

The Stinger series is designed for repeated, high-load use. Upgraded electronics and premium solenoids improve efficiency under pressure, while larger gears and a reinforced drive spline help the winch cope with frequent heavy-duty recovery cycles. If you want a recovery winch that feels dependable in real working conditions, the Stinger 12000 is built for exactly that.

Durable Steel Wire Rope for Tough Terrain

This model comes fitted with high-grade steel wire rope for excellent abrasion resistance on rocks, rough ground and demanding recovery routes. It is a strong choice for drivers and operators who prefer the traditional toughness and wear resistance of wire rope over synthetic.

Sealed for British Weather and Harsh Conditions

Mud, rain and water crossings are part of the job, so the Stinger 12000 is built with enhanced sealing that exceeds IP68 standards. This helps protect the internal components from dust and water ingress, giving you more confidence in wet, muddy and unpredictable UK conditions.

Wireless Freedom with Wired Backup

The DUO Control System gives you the flexibility of wireless operation, allowing you to control the winch from a safer position. For added peace of mind, a wired backup connection is also included, so you still have control if the remote battery fails or signal interference becomes an issue.

Safe, Controlled Operation

An advanced automatic braking system helps prevent rollback during lifting and loading, giving you more control when positioning vehicles or equipment. Whether you are recovering a stuck 4×4 or loading heavy machinery, the Stinger 12000 is designed to deliver smooth, controlled pulling power.

Key Features

  • 12,000lb (5443kg) pulling capacity for heavy 4×4 recovery, transport and commercial use
  • 24V electric winch suitable for recovery trucks, transporters and 24V vehicles
  • Steel wire rope for excellent durability and abrasion resistance
  • Wireless remote control with wired backup via the DUO Control System
  • IP68+ sealing for dependable use in water, mud and harsh weather
  • Upgraded solenoids and reinforced gearing for demanding recovery cycles
  • Automatic braking system for safer lifting, loading and controlled recovery

Please note: Suitable for 4×4, recovery, transport and commercial use where a 24V system is fitted. Ensure correct mounting and wiring for your vehicle.

Specifications

Rated Line Pull: 12,000lb (5,443kg)
Voltage: 24V DC
Motor: 7.3hp (5.5kW)
Gear Train: 3 stage planetary, 196:1 ratio
Clutch: Pull and turn
Braking Action: Mechanical, auto load holding
Drum Size: 2.48" x 8.8" (63mm x 244mm)
Handheld Control: Waterproof handheld remote, 12.7' (3.9m) cord; wireless remote included
Rope Size: 3/8" x 85.3' (9.2mm x 26m) steel wire rope, 4-way roller fairlead
Winch Dimension: 21.25" L x 6.49" W x 9.05" H (540mm L x 165mm W x 230mm H)
Mounting Bolt Pattern: 10" x 4.5" (254mm x 114.3mm)
Net Weight: 87.8lb (40kg)
Performance by layer
Layer Rated pull Rope capacity
1 12,000lb (5,443kg) 17.7 ft (5.4m)
2 9,563lb (4,342kg) 40.4 ft (12.3m)
3 7,949lb (3,609kg) 66.9 ft (20.4m)
4 6,801lb (3,087kg) 85.3 ft (26m)

Whats in the Box?

  • 1 x Stinger winch with control box
  • 1 x Dual wireless/wired remote
  • 1 x Remote control cable
  • 1 x Roller fairlead
  • 1 x Set of high tensile fixing bolt screws
  • 1 x 1/4" Grade 70 forged clevis hook with safety catch
  • 1 x Set of high tensile fixing bolt screws
  • 3 x Connecting cables

Downloads

Novawinch_catalog_2024
