Powerful Gladiator 12v Winch for Trucks, Jeeps, and SUVs – UK Winches and Hoists

Gladiator F-Type 12500 Synthetic 12v Electric Winch

£649.99 (ex. VAT) - £779.99 (inc. VAT)

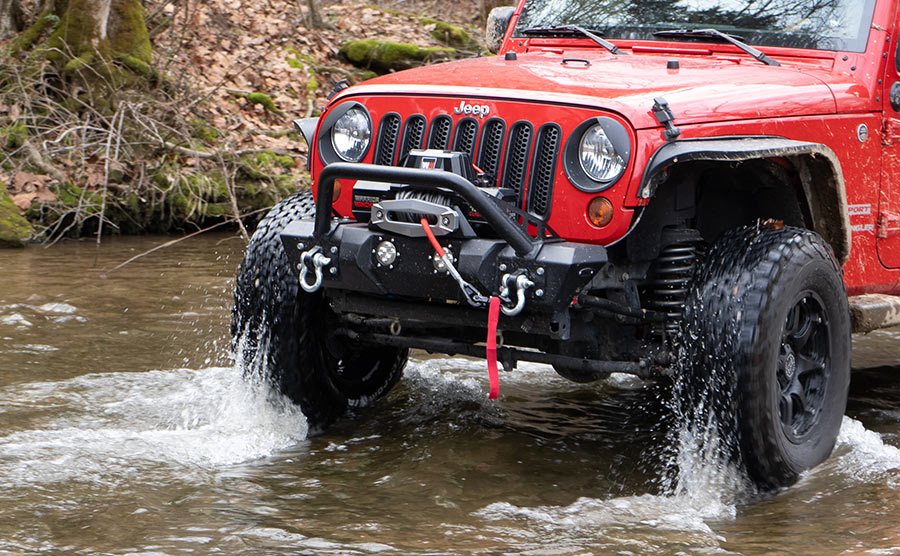

The Gladiator 12v 12500 lbs Electric winch is part of our New Premium Winch Range perfectly suited for offroad, trailers, trucks, Jeeps, SUVs, 4×4 and small recovery.
Warrior’s Gladiator winches continue to redefine winching with unmatched durability, performance, and style. A built in 2in1 wired/wireless rechargeable remote system makes winching easy from up to 50ft (15m) away.  The Thermal Overload Protection System means no fear of overheating and damage when winching in extreme environments and during long, hard pulls.
Our Revolutionary External Brake Design keeps heat away from the drum, putting less strain and wear and tear on your winch rope whilst our HRC50 Full Steel Gears offer superior durability and high efficiency for sustained pulling power.
Extensive IP68 Waterproofing together with a Silver Copper Motor with Copper Brush Holders, plus the Durable Coating and Stainless-Steel Mounting Hardware provides superior corrosion resistance.
Do you need a mount for your Warrior Gladiator winch select below to add to your order?
ist600-installation-plate
IST600 - WINCH INSTALLATION PLATE FOR winches up to 15000LB
SKU: IST600
£49.35
Product price: £649.99 (ex. VAT)
Total options:
Order total:
SKU: 12FTA12 Categories: , , , , , , Brand: warriorlogoWarrior Winches

Warrior Winches

When it comes to the perfect fusion of brute power, legendary reliability, and unbeatable value, Warrior Winches stands in a league of its own. Trusted by the British Military, professional recovery operators, and off-road enthusiasts across the globe, Warrior has become the go-to name for those who need high-performance recovery gear without the premium price tag.

At UK Winches and Hoists, we are proud to be a premier stockist of the Warrior range. Whether you are outfitting a commercial recovery truck, a 4x4 expedition vehicle, or an industrial trailer, Warrior provides the mechanical muscle to pull you through the toughest conditions the UK weather can throw at you.

Description

Sku 12FTA12
EAN 5060966745822
Rated Line Pull 12500 lbs
Motor Type 12V: Input: 6.7hp / 5.0kW; Output: 3.2hp / 2.4kW
Rated Volt 12
Clutch Manual
Gearing 196:1
Gearing System Planetary
Braking Action Patented ratchet
Drum Size (Diameter x Length) 63 x 217 mm
Controls 2in1 Rechargeable Wired/Wireless Remote
Cable Material Synthetic
Cable Size (Diameter x Length) 10mm x 25.0m
Fairlead Hawse
Mounting Pattern 254mm x 114.3mm
Waterproof Rating (IP) 68
Dimensions 558 x 166 x 255 mm
Weight 32.3 kg
Warranty 7 Year



Layer of Rope/Cable Line Pull: lbs (kgs) Rope on drum ft(m)
1 12500(5670) 15.1(4.6)
2 9775(4434) 34.1(10.4)
3 8000(3629) 57.7(17.6)
4 6800(3084) 82(25)
Line Pull
lbs (kgs)
Line Speed 12v
ft/min (m/min)
Amp Draw
12v
0 27.9(8.5) 45
6000(2722) 11.5(3.5) 200
8000(3629) 8.2(2.5) 240
10000(4536) 5.9(1.8) 300
12500(5670) 4.2(1.3) 380

What’s in the box:

  • Gladiator Winch
  • 2in1 Rechargeable Remote (Wired and wireless)
  • Aluminum Hawse Fairlead
  • Armortek Extreme Synthetic Rope
  • Removable Heavy Duty Hook
  • Heavy Duty Battery Leads
  • Control Box Relocation Plate
  • Isolation Switch
  • Stainless Steel Mounting Hardware (nuts/bolts)

Additional information

Weight 32.3 kg
Dimensions 166 × 166 × 255 cm
