Description

Warrior 1000kg 240v Electric Hoist with Air Socket

Our compact, general purpose 240v electric hoist is ideal for all manner of lifting and pulling work.  This model is now fitted with a fantastic new quick release air socket on the hand control lead means that the hand control can be quickly and easily unplugged and replaced by an optional wireless control (sold separately).

The included mounting enable easy installation onto box section of up to 60mm x 60mm.  This hoist is fitted with a 2.75m long wired hand control with power in & power out facility. Conforms to part of BS EN14492-1 and BS EN14492-2 standard with built in upper and lower limit switches and thermal overload on the motor for added safety.

The duty cycle of this winch is S3 – 20% on a 10 minute cycle.  Simply translated this means that the unit can be used continuously for 2 minutes before an 8 minute cool down period is required.  The load holding break will ensure that your load is held safely during down time.

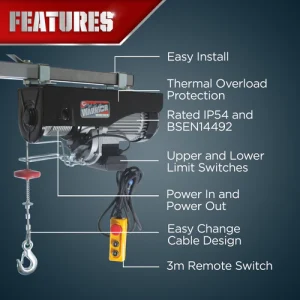

Standard Features:

♦ Line Capacity: 500kg single cable, & 1000kg double cable
♦ Lift Height: 18m metres single cable & 9 metres double cable (Using Included Pulley Block)

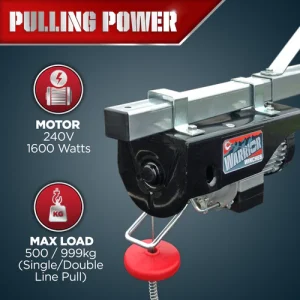

♦ Motor: Reversible 1600W 240v 50Hz Motor – Powers In and Out (Standard UK 3-Pin Plug – Requires 240v 50Hz BS Power Supply)
♦ Warranty: 12 Month Return to Base

Accessories:

♦ Wired Hand Control: 2.75m Wired Hand Control with Stop Button
♦ Wireless Control: Available as an optional extra
♦ Mountings: Included for Standard 60mm2 Box Section installations

Also Includes:

♦ 3-Pin UK Plug on 650mm Flex
♦ Pulley Block for double line operation
♦ Instruction Manual

Other Information:

♦ Dimensions: 490mm L x 170mm D x 260mm H (620mm H inc mountings, cable and hook)
♦ Approx. Shipping Weight: 33kg

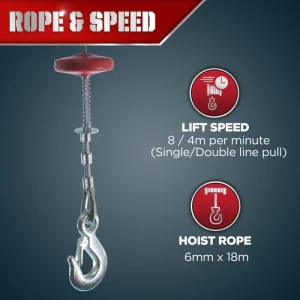

♦ Lifting Speed: 8m/min single cable & 4m/min double cable
♦ Casing Colour:  Black
