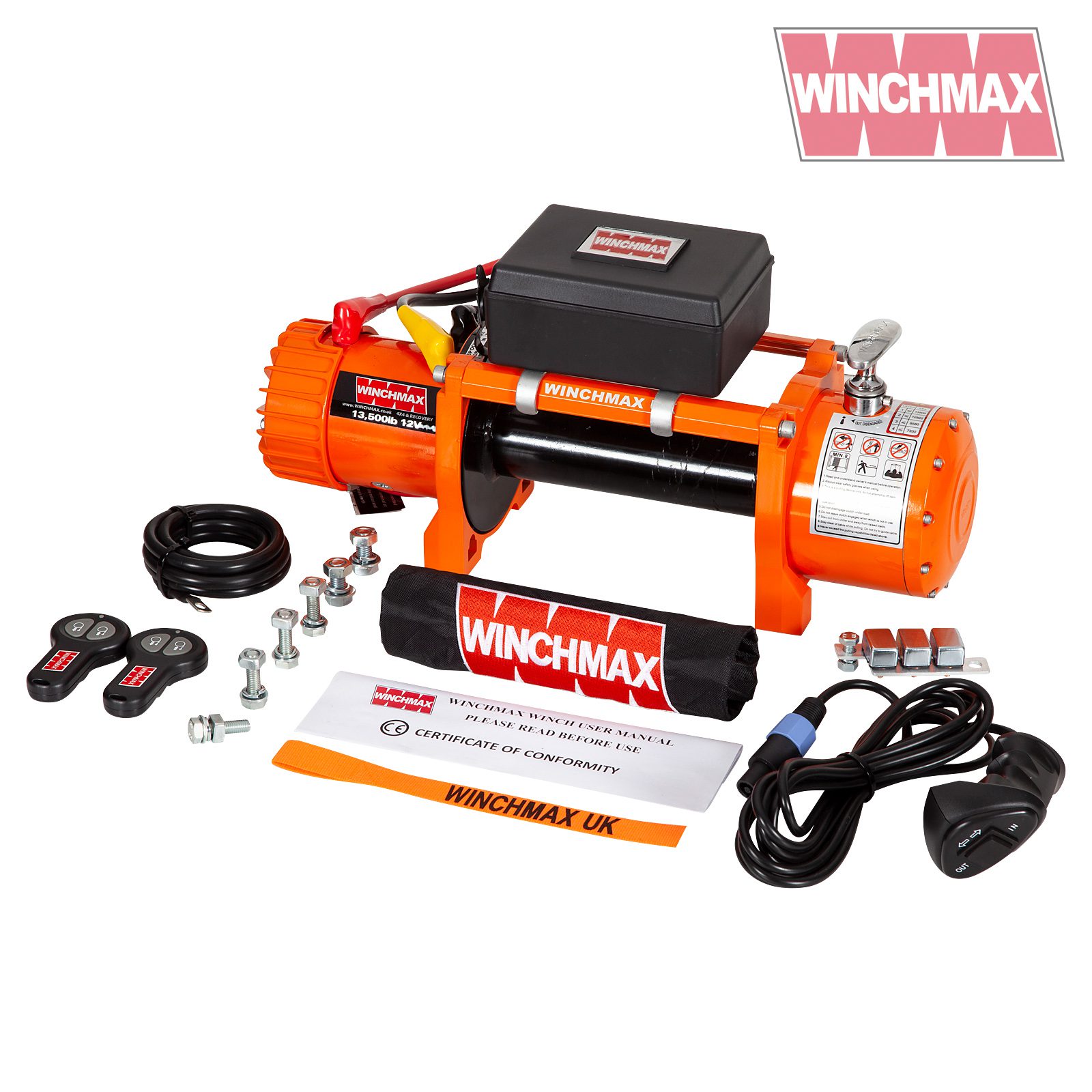

Name: 13,500lb (6,123kg) Original Orange 12v Electric Winch, no Rope, no Fairlead. Twin Wireless Remote Control
Brand: Winchmax Winches
SKU: wm-1016
Availability: InStock

13,500lb (6,123kg) Original Orange 12v Electric Winch, no Rope, no Fairlead. Twin Wireless Remote Control

£308.29 (ex. VAT) - £369.95 (inc. VAT)

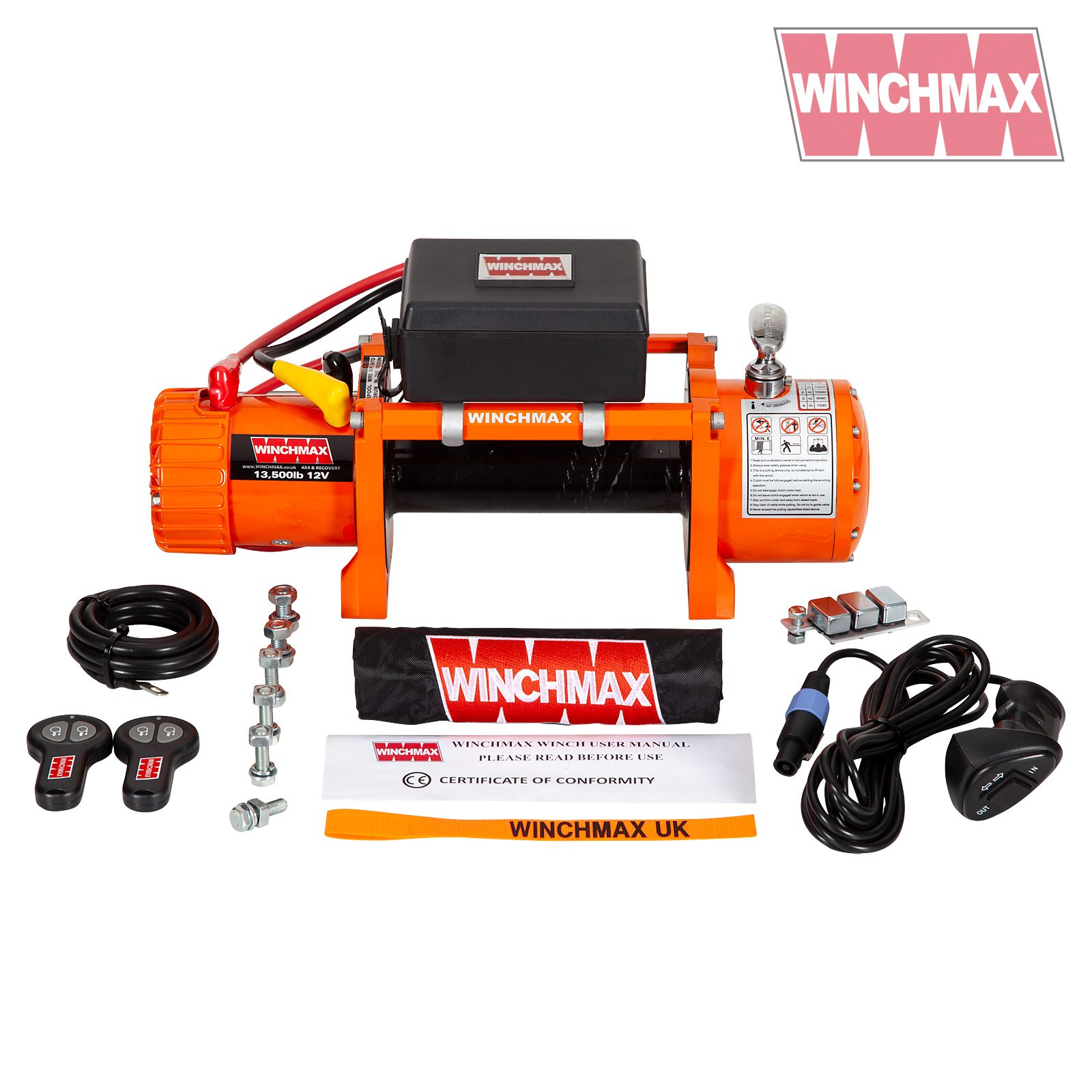

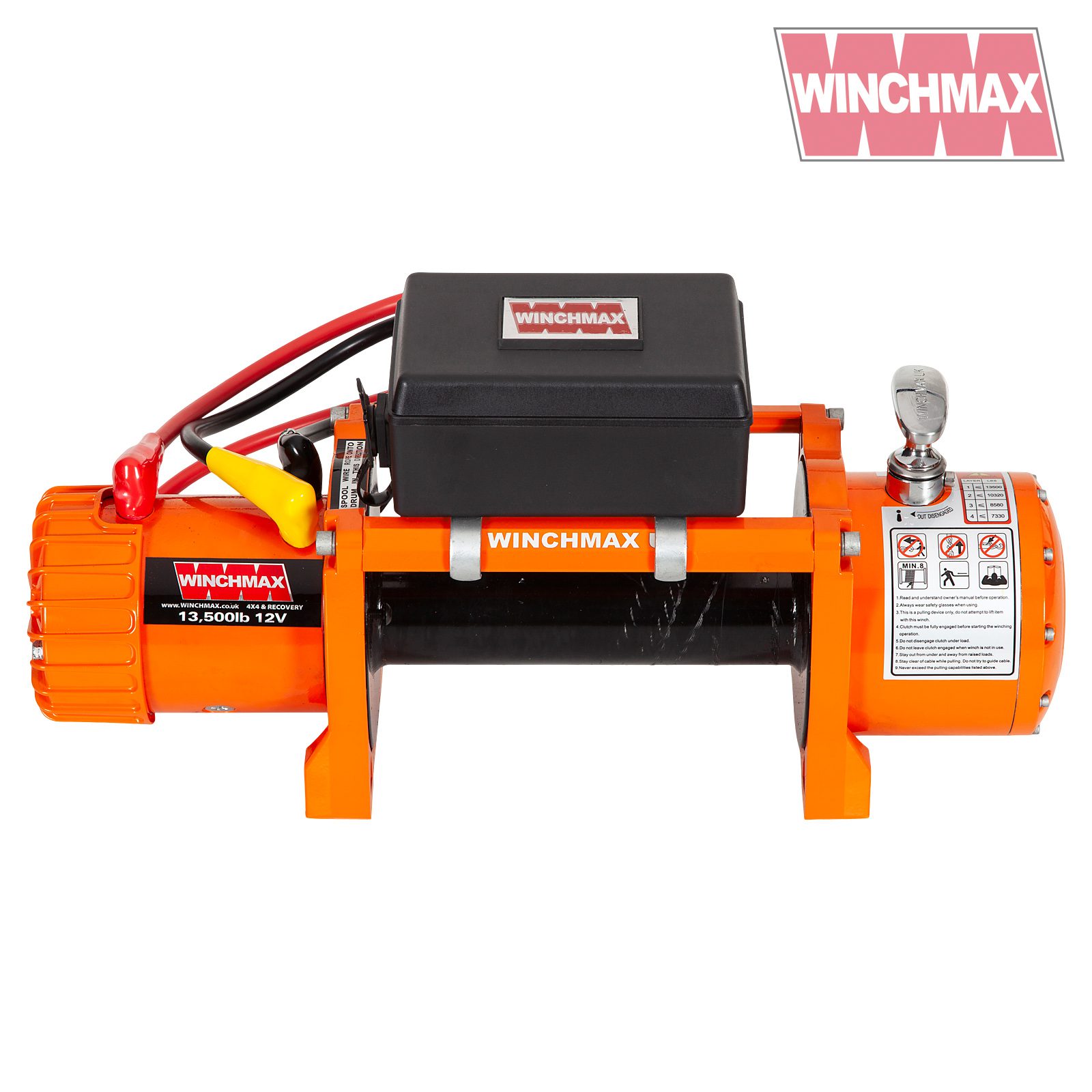

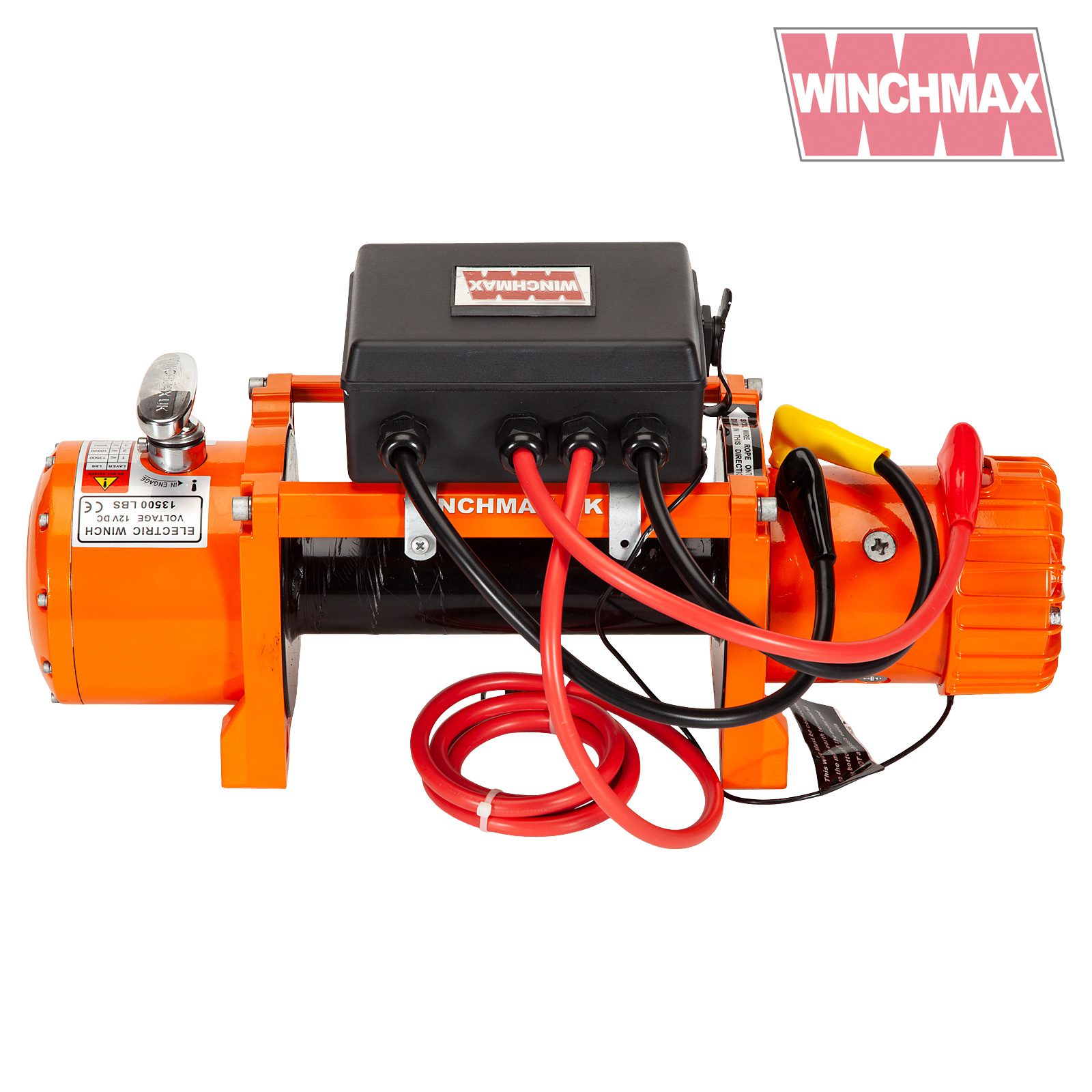

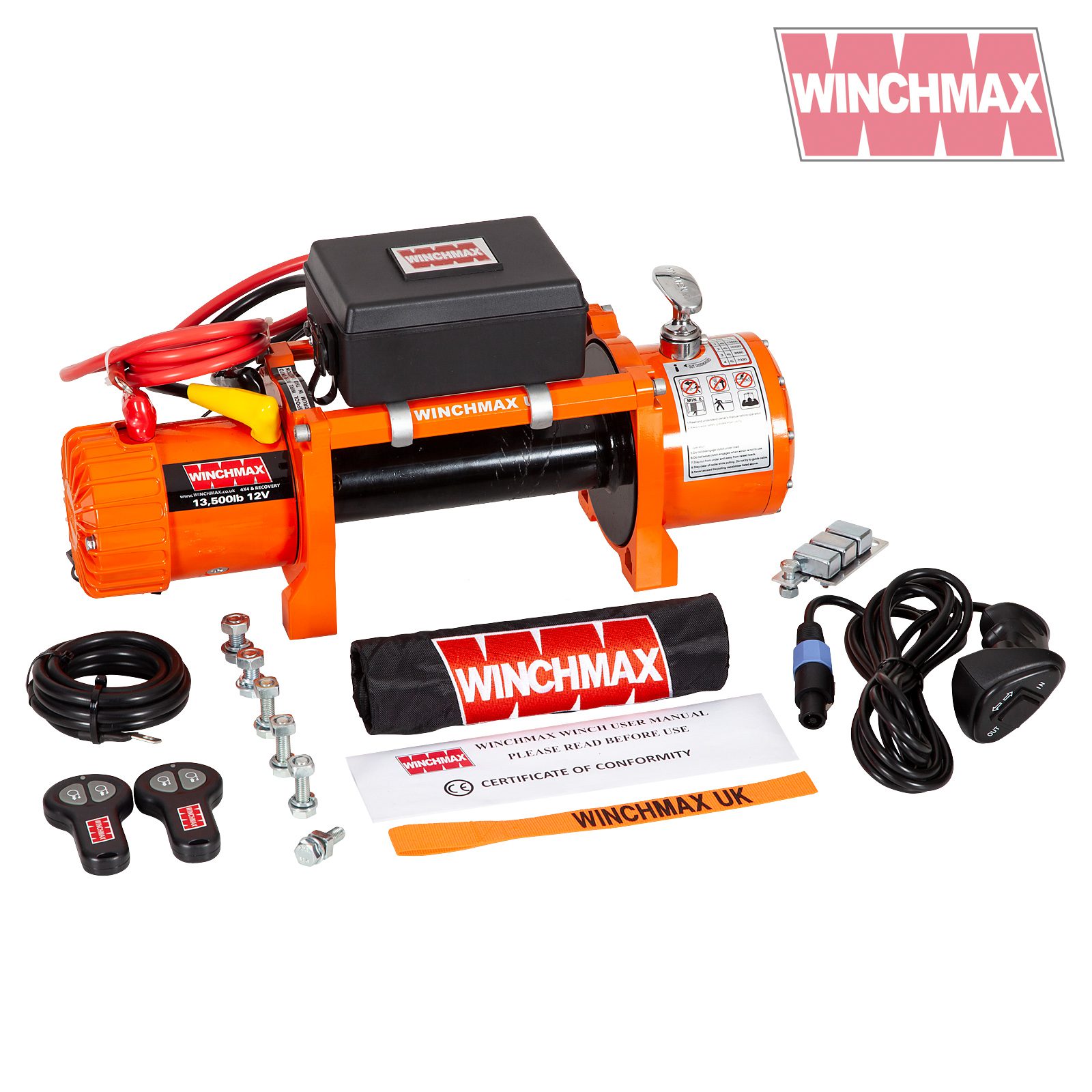

13,500lb (6,123kg) Original Orange 12v Electric Winch, no Rope, no Fairlead. Twin Wireless Remote Control.
Bare Winch

Ideal for recovery trucks and 4x4s up to 3.5T

Features

WINCHMAX Winch

13,500lb (6,123kg) straight-line pull 12v electric winch.

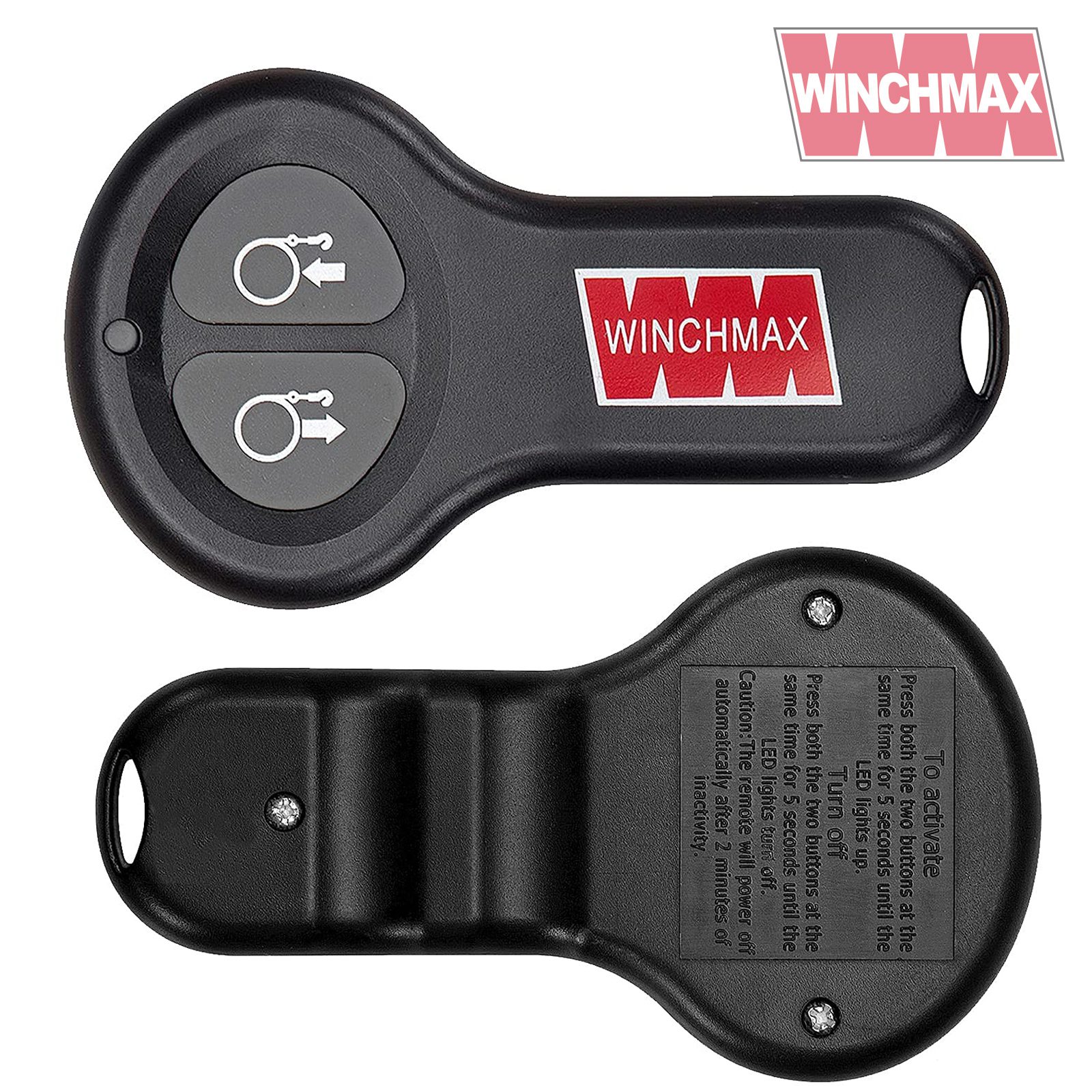

Latest technology long-range wireless remote controls, twin handsets.

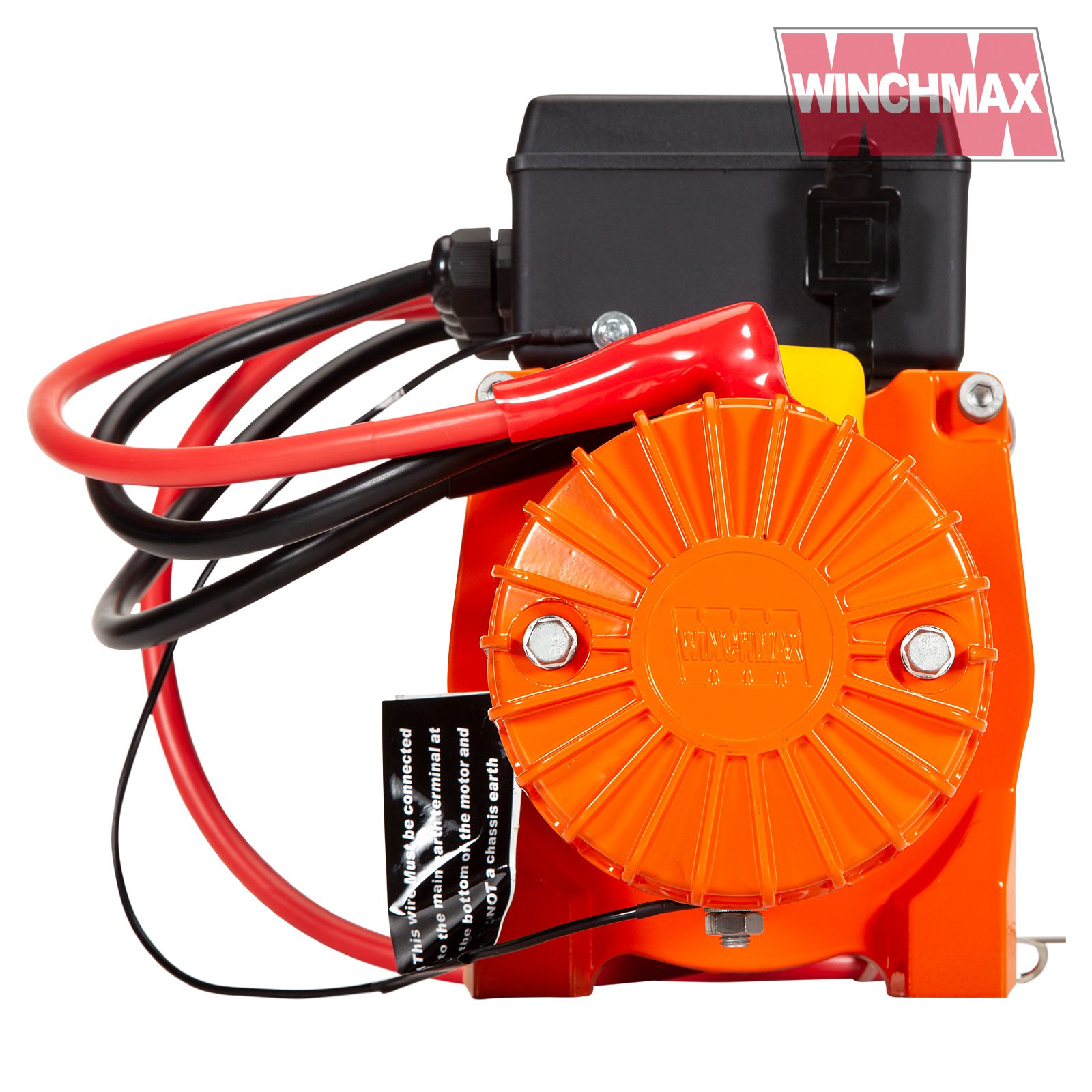

Super powerful 12v 6.8hp/5.1kw series wound electric motor.
Massive ultra-tough three-stage gearbox with hardened steel gears.
Motor and gearbox casing machined from billet steel for maximum impact protection.
Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.
Power in/out big grip wander lead with extra-long 4.5m cord. Link here

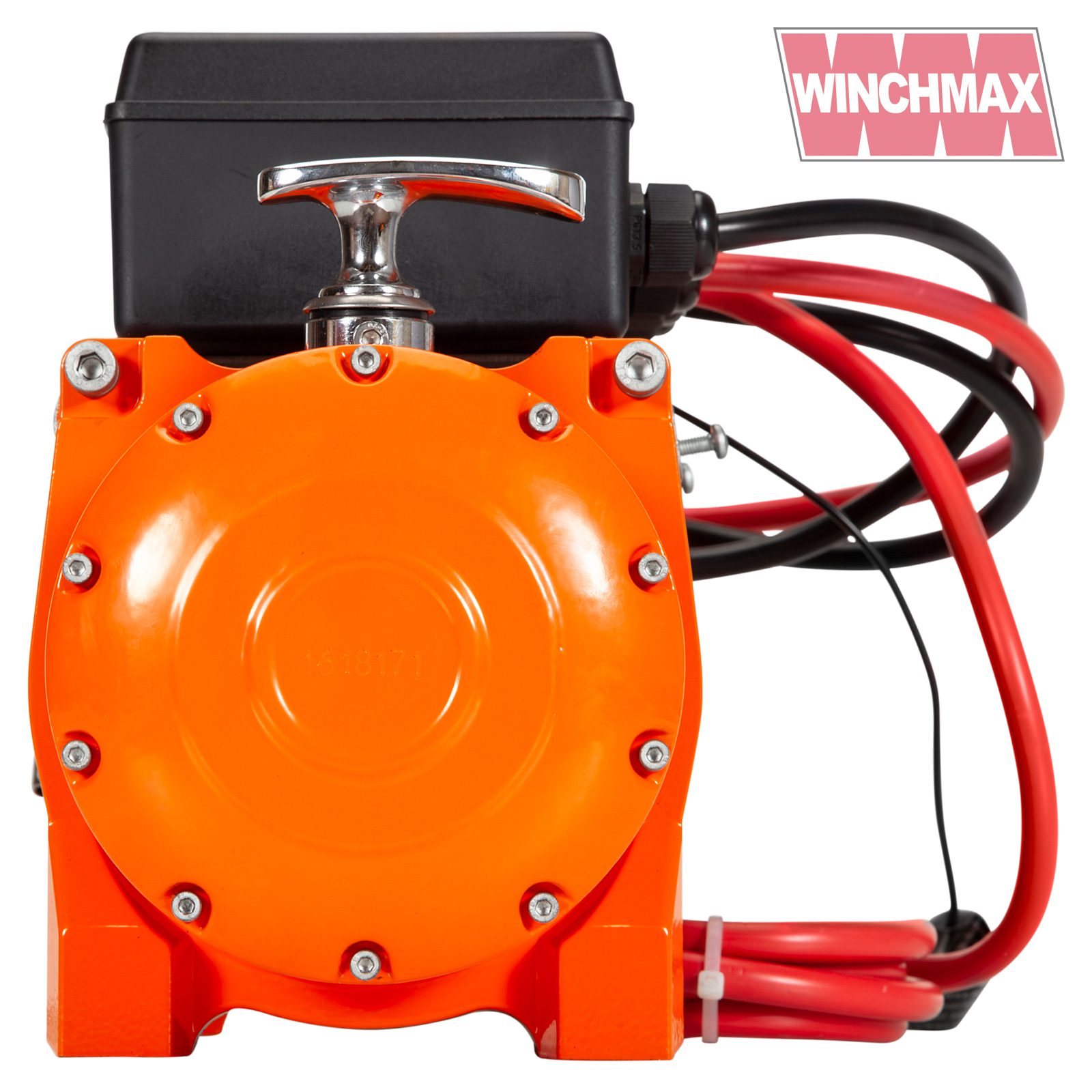

Sliding ring gear freewheel clutch.
High tensile fixing bolt kit.

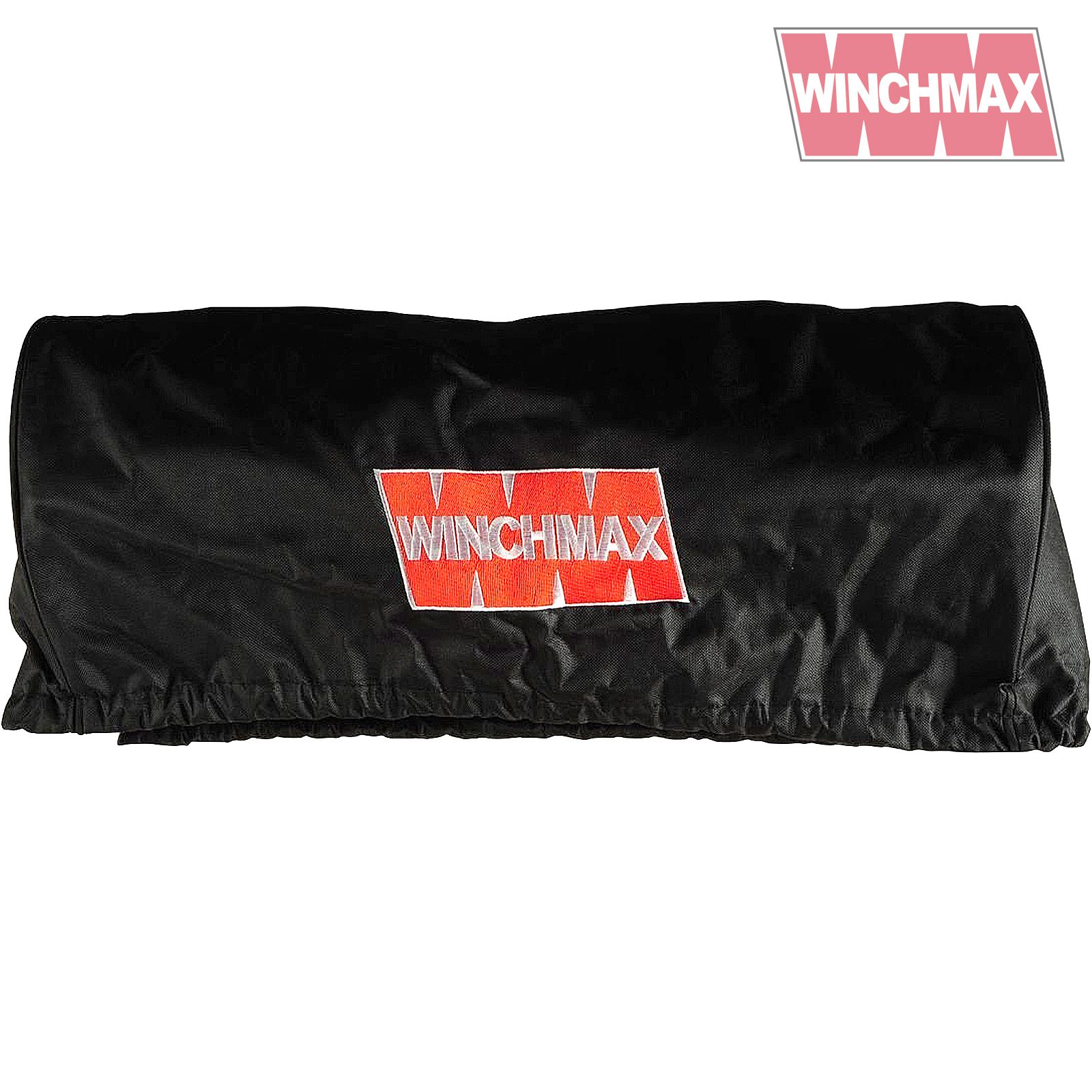

Strong WINCHMAX branded cover to protect from water and road grime.
Heavy-duty & built to last – gross weight 30kg.
CE certified & built to ISO9001 quality management system requirements.

Industry-leading lifetime warranty on mechanical components & 3yrs warranty on electrical.

SKU: wm-1016 Categories: All Winches, Winchmax Electric Winches, Winchmax Winches, Winchmax 4x4 Winches, Electric Winches, 12v Electric Winches Tag: WM1350012V-NRNF Brand:

Winchmax Winches

With an established and enviable reputation in the Recovery, 4×4 and Off-Road markets, Winch max offer a wide range of 12V and 24V Electric winches and Industrial Hydraulic winches.

Description

Single Line Rated Pull	13,500lb (6,123kg)
Motor	12v 6.8hp/5.1kw, series wound
Control	Remote Switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	265:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 64mm (2.5″) Length 224mm (8.82″)
Drum Finish	Black, painted
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72″) 25mmsq – 5.6mm diameter
Winch Finish	Original Orange powder coated
Weight (GW)	30kg (66lb)
Overall Dimensions (LxWxH)	536 x 160 x 218mm (21.3″ x 6.3″ x 8.6″)
Mounting Bolt Pattern	10.00″ ±0.015″ x 4.50″ ±0.01″ (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	6.5m/min (21.3 ft/min)
Wireless Remote	Long Range Wireless Remote Control x 2

Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0

Line Pull (lb/kg	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1,363)	11.48ft (3.5m)	138A
6,000 (2,727)	8.86ft (2.7m)	218A
9,000 (4,090)	7.72ft (2.2m)	260A
13,500 (6,123)	5.58ft (1.7m)	415A
