Novawinch WinchesDescription

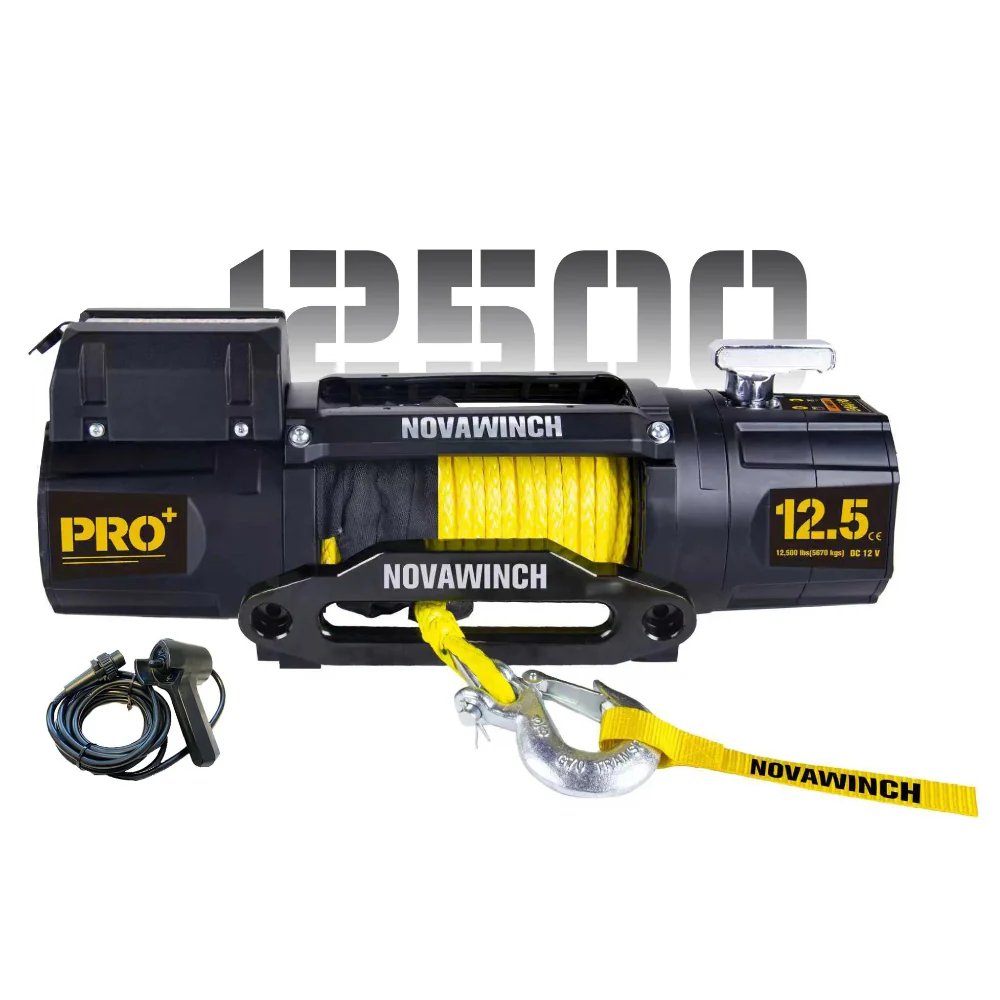

The Novawinch PRO12500 is a powerhouse of the PRO PLUS series, engineered specifically for heavy-duty 4×4 recovery, commercial recovery vehicles, and industrial trailers. Boasting a 5,670kg (12,500lb) pulling capacity, this 12V electric winch is built to survive the harshest environments thanks to its IP68-rated waterproof sealing and rugged aluminium construction.
Heavy-Duty Performance for Recovery & Trailers
Designed for those who demand reliability, the PRO12500 features a high-torque 6.4 hp (4.7 kW) series-wound motor. Whether you are extracting a stuck vehicle off-road or loading heavy equipment onto a flat-bed trailer, the combination of raw power and a precision-engineered gearbox ensures dependable load handling every time.
Premium Synthetic Rope for Maximum Safety
Weight-saving and user-friendly, this winch comes equipped with 9.5mm x 26m (3/8″ x 85.3′) synthetic rope. Unlike traditional steel cable, synthetic rope is lighter to handle and safer in the event of a break. To ensure longevity, the PRO12500 uses an innovative braking system that isolates heat away from the drum, protecting the rope from thermal damage during long pulls.
Advanced Braking & Control
Safety is paramount in recovery. The PRO12500 utilizes a double disk brake system for exceptional control during both payout and retrieval. When paired with the automatic load-holding gearbox, you get smooth, “no-creep” operation, giving you total confidence when winching on inclines.
Built to Endure: IP68 Waterproofing
The British weather is no match for the PRO12500. The motor and gearbox are fully protected by IP68-rated seals, preventing the ingress of water, mud, and dust. The housing is crafted from die-cast aluminium with stainless steel fasteners, ensuring your investment remains corrosion-free and functional for years to come.
Key Specifications
-
Rated Line Pull: 12,500lb (5,670kg) – Ideal for 4x4s, recovery trucks, and trailers.
-
Motor: Powerful 12V 6.4 hp (4.7 kW) series-wound motor.
-
Rope: 3/8″ x 85.3′ (9.5mm x 26m) Synthetic Rope with heat-isolating drum.
-
Line Speed: Rapid 15 m/min (49.2 FPM) no-load speed; 1 m/min (3.3 FPM) at full load.
-
Braking: Mechanical double disk brake for superior safety and control.
-
Weather Protection: Full IP68 waterproof rating on motor and gearbox.
-
Durability: Aluminium die-cast housing with stainless steel hardware.
-
Remote: Heavy-duty waterproof rubber remote with a 3.9m (12.7′) lead.
Note: This unit is designed for 12V electrical systems. Professional installation is recommended to ensure correct mounting and wiring.
